ARBOS P3000 504
ENGINE
Engine: Yanmar
Cylinder Number: 4
Cylinder Diameter × Stroke: 88 × 90 mm
Delivery Capacity: 2.19L
Rated Power: 36.8kW
Rated Speed: 2800 r/min
Maximum Torque: 458.1 (N·m)
Speed: 1091 r/min
Total Power Rating: 256.6 g/kW·h
PERFORMANCE
Enduring over 200 Hours in Field Testing to Optimise Durability and Reliability
Four Wheel Drive
Horsepower/ Kilowatt: 50Hp
Maximum power of PTO shaft (kW): 28.9-33.3kW
PTO Speed: 540 & 750 RPM
Max Lifting Force: 10.1 kN
1 Pair of Hydraulic Ports
Maximum torque/speed: 458.1N·m / 1091 r/min
Speed Range: 2.54-26.36 km/h
3 Point Hitch
1 Range Selector: High and Low Range Selector
DESIGN

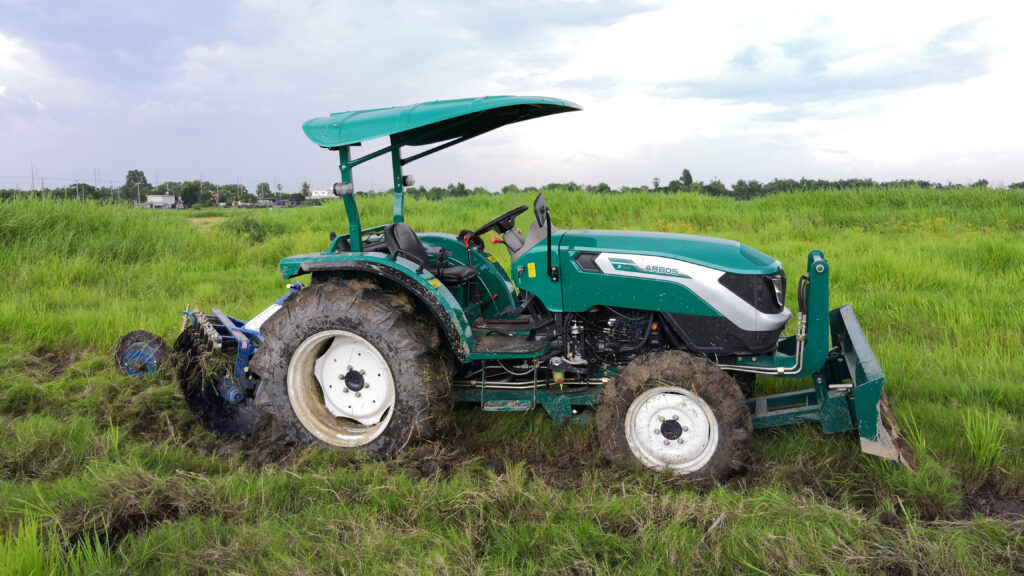

– The Lovol ARBOS P3504 wheeled tractor is a high ground clearance tractor designed for paddy field operations.
– The P3504 is equipped with the Japanese Yanmar 4TNV88 engine with a displacement of 2.19L.
– It adopts natural aspiration and has low fuel consumption and strong power. It is equipped with a three-stage fuel filter with an electronic fuel pump and has an electronic flameout control system.
– Japan’s original high performance engine. It is designed to be fuel-saving, reliable and powerful.
– It has a light weight small steering radius with high ground clearance, thus it is more suitable for paddy field operations.
– As it uses synchronizer shuttle shifting, side control of main and range shift, shock absorbing floor, etc., it is in line with paddy field operation habits. It can be equipped with agricultural machinery such as disc plough, disc harrow, rotary tiller, etc., and has good adaptability to working conditions.
– The appearance adopts the Italian design concept, with built-in air filter and the built-in silencer, the appearance is simple and atmospheric. It is powerful and reliable.
